Java用マイクロサービスSDK

$ mvn -v
Apache Maven 3.8.5
Maven home: /Library/Maven/apache-maven-3.8.5
Java version: 17.0.6, vendor: Oracle Corporation
Java home (runtime): /Library/Java/JavaVirtualMachines/jdk-17.0.6.jdk/Contents/Home
OS name: "mac os x", version: "10.14.6", arch: "x86_64", family: "mac"

$ docker version
Client: Docker Engine - Community
 Version:           20.10.14
 API version:       1.41
 Go version:        go1.16.15
 Git commit:        a224086
 Built:             Thu Mar 24 01:47:57 2022
 OS/Arch:           linux/amd64
 Context:           default
 Experimental:      true

Server: Docker Engine - Community
 Engine:
  Version:          20.10.14
  API version:      1.41 (minimum version 1.12)
  Go version:       go1.16.15
  Git commit:       87a90dc
  Built:            Thu Mar 24 01:45:46 2022
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.5.11
  GitCommit:        3df54a852345ae127d1fa3092b95168e4a88e2f8
 runc:
  Version:          1.0.3
  GitCommit:        v1.0.3-0-gf46b6ba
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

$ mvn archetype:generate -DgroupId=c8y.example -DartifactId=hello-microservice-java -Dversion=1.0.0-SNAPSHOT -DarchetypeArtifactId=maven-archetype-quickstart -DinteractiveMode=false

<properties>
    <java.version>17</java.version>
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <maven.compiler.target>${java.version}</maven.compiler.target>
    <spring-boot-dependencies.version>3.3.5</spring-boot-dependencies.version>
</properties>

{
    "category": "system",
    "value": "2025.0.17",
    "key": "version"
}

    <c8y.version>2025.0.5</c8y.version>
    <microservice.name>hello-microservice-java</microservice.name>

<repositories>
    <repository>
        <id>cumulocity</id>
        <layout>default</layout>
        <url>https://download.cumulocity.com/maven/repository</url>
    </repository>
</repositories>
<pluginRepositories>
    <pluginRepository>
        <id>public</id>
        <url>https://download.cumulocity.com/maven/repository</url>
    </pluginRepository>
</pluginRepositories>

<dependencies>
    ...
    <dependency>
        <groupId>com.nsn.cumulocity.clients-java</groupId>
        <artifactId>microservice-autoconfigure</artifactId>
        <version>${c8y.version}</version>
    </dependency>
</dependencies>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>com.nsn.cumulocity.clients-java</groupId>
            <artifactId>microservice-dependencies</artifactId>
            <version>${c8y.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <version>${spring-boot-dependencies.version}</version>
            <configuration>
                <mainClass>c8y.example.App</mainClass>
            </configuration>
            <executions>
                <execution>
                    <goals>
                        <goal>repackage</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        <plugin>
            <groupId>com.nsn.cumulocity.clients-java</groupId>
            <artifactId>microservice-package-maven-plugin</artifactId>
            <version>${c8y.version}</version>
            <executions>
                <execution>
                    <id>package</id>
                    <phase>package</phase>
                    <goals>
                        <goal>package</goal>
                    </goals>
                    <configuration>
                        <name>${microservice.name}</name>
                        <image>${microservice.name}</image>
                        <encoding>UTF-8</encoding>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

package c8y.example;

import com.cumulocity.microservice.autoconfigure.MicroserviceApplication;
import org.springframework.boot.SpringApplication;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@MicroserviceApplication
@RestController
public class App {
    public static void main (String[] args) {
        SpringApplication.run(App.class, args);
    }

    @RequestMapping("hello")
    public String greeting (@RequestParam(value = "name", defaultValue = "World") String you) {
        return "Hello " + you + "!";
    }
}

application.name=my-first-microservice
server.port=80

{
  "apiVersion": "2",
  "version": "@project.version@",
  "provider": {
    "name": "Things Cloud"
  },
  "isolation": "MULTI_TENANT",
  "replicas": 2,
  "livenessProbe": {
    "httpGet": {
      "path": "/health"
    },
    "initialDelaySeconds": 60
  },
  "readinessProbe": {
    "httpGet": {
      "path": "/health"
    },
    "initialDelaySeconds": 60
  },
  "requiredRoles": [ ]
}

$ mvn clean install

$ ls target | grep zip
hello-microservice-java-1.0.0-SNAPSHOT.zip

https://<yourTenantDomain>/service/hello-microservice-java/health

$ echo -n t0071234/testuser:secret123 | base64
dDAwNzEyMzQvdGVzdHVzZXI6c2VjcmV0MTIz

$ curl -H "Authorization: <AUTHORIZATION>" https://<yourTenantDomain>/service/hello-microservice-java/hello?name=Skywalker

$ curl --user "<TENANTID>/<USERNAME>:<PASSWORD>" https://<yourTenantDomain>/service/hello-microservice-java/hello?name=Skywalker

POST <URL>/application/applications

HEADERS:
  "Authorization": "<AUTHORIZATION>"
  "Content-Type": "application/vnd.com.nsn.cumulocity.application+json"
  "Accept": "application/vnd.com.nsn.cumulocity.application+json"

BODY:
{
  "name": "<APPLICATION_NAME>",
  "type": "MICROSERVICE",
  "key": "<APPLICATION_NAME>-key"
}

$ curl -X POST -s \
  -d '{"name":"local-microservice-java","type":"MICROSERVICE","key":"my-hello-world-ms-key"}' \
  -H "Authorization: <AUTHORIZATION>" \
  -H "Content-Type: application/vnd.com.nsn.cumulocity.application+json" \
  -H "Accept: application/vnd.com.nsn.cumulocity.application+json" \
  "<URL>/application/applications"

{
    "availability": "PRIVATE",
    "contextPath": "local-microservice-java",
    "id": "<APPLICATION_ID>",
    "key": "my-hello-world-ms-key",
    "manifest": {
        "noAppSwitcher": true,
        "settingsCategory": null
    },
    "name": "local-microservice-java",
    "owner": {
        "self": "...",
        "tenant": {
            "id": "<TENANT_ID>"
        }
    },
    "requiredRoles": [],
    "roles": [],
    "self": "<URL>/application/applications/<APPLICATION_ID>",
    "type": "MICROSERVICE"
}

GET <URL>/application/applications/<APPLICATION_ID>/bootstrapUser

HEADERS:
  "Authorization": <AUTHORIZATION>
  "Content-Type": application/vnd.com.nsn.cumulocity.user+json

{
    "password": "<BOOTSTRAP_USER_PASSWORD>",
    "name": "<BOOTSTRAP_USER_NAME>",
    "tenant": "<BOOTSTRAP_USER_TENANT>"
}

$ mvn clean install -Dmicroservice.package.deleteImage=false

$ docker images

REPOSITORY                TAG                 IMAGE ID            CREATED             SIZE
hello-microservice-java   1.0.0-SNAPSHOT      3e5e7aeea7bc        52 minutes ago      143MB

$ docker run -p 8082:80 -e C8Y_BOOTSTRAP_TENANT=<BOOTSTRAP_USER_TENANT> \
  -e C8Y_BOOTSTRAP_USER=<BOOTSTRAP_USER_NAME> \
  -e C8Y_BOOTSTRAP_PASSWORD=<BOOTSTRAP_USER_PASSWORD> \
  -e C8Y_MICROSERVICE_ISOLATION=MULTI_TENANT \
  -i -t -e C8Y_BASEURL=<URL> <IMAGE_ID>

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v3.3.5)

2022-10-21 15:53:07.510  INFO 7 --- [main] c8y.example.App                          : Starting App on dff01acae6d8 with PID 7 (/data/hello-microservice-java.jar started by root in /)
...
2022-10-21 15:53:17.583  INFO 7 --- [main] s.b.c.e.t.TomcatEmbeddedServletContainer : Tomcat started on port(s): 80 (http)
2022-10-21 15:53:17.598  INFO 7 --- [main] c8y.example.App                          : Started App in 11.32 seconds (JVM running for 12.192)

<name>iptracker-microservice</name>
<artifactId>iptracker-microservice</artifactId>
<properties>
    <java.version>17</java.version>
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <maven.compiler.target>${java.version}</maven.compiler.target>
    <spring-boot-dependencies.version>3.3.5</spring-boot-dependencies.version>
    <c8y.version>1016.0.117</c8y.version>
    <microservice.name>iptracker-microservice</microservice.name>
</properties>

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <scope>compile</scope>
</dependency>

{
    "apiVersion": "2",
    "version": "@project.version@",
    "provider": {
        "name": "Things Cloud"
    },
    "isolation": "PER_TENANT",
    "settings": [
        {
            "key": "ipstack.key",
            "defaultValue": "<your-ipstack-key>"
        },
        {
            "key": "tracker.id",
            "defaultValue": "<your-tracker-id>"
        }
    ],
    "livenessProbe": {
        "httpGet": {
            "path": "/health"
        },
        "initialDelaySeconds": 60,
        "periodSeconds": 10
    },
    "readinessProbe": {
        "httpGet": {
            "path": "/health",
            "port": 80
        },
        "initialDelaySeconds": 20,
        "periodSeconds": 10
    },
    "requiredRoles": [
        "ROLE_EVENT_READ",
        "ROLE_EVENT_ADMIN",
        "ROLE_ALARM_READ",
        "ROLE_ALARM_ADMIN"
    ],
    "roles": []
}

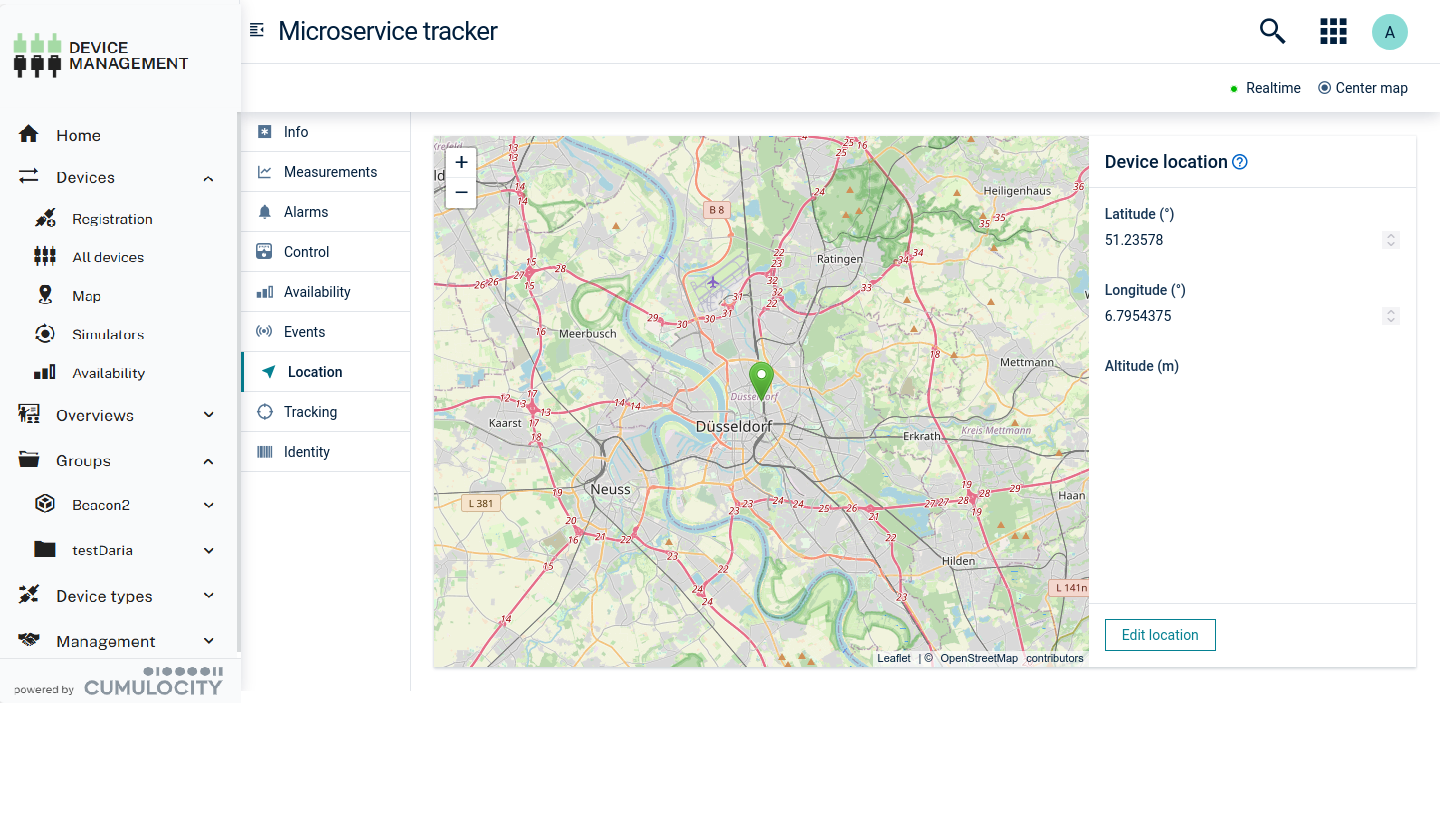

POST <URL>/inventory/managedObjects

HEADERS:
  Content-Type: application/vnd.com.nsn.cumulocity.managedobject+json; charset=UTF-8; ver=0.9
  Accept: application/vnd.com.nsn.cumulocity.managedobject+json; charset=UTF-8; ver=0.9
  Authorization: <AUTHORIZATION>

BODY:
  {
    "c8y_IsDevice": {},
    "c8y_Position": {
      "lat": <LATITUDE>,
      "lng": <LONGITUDE>
    },
    "name": "Microservice tracker"
  }

package c8y.example;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;

@JsonIgnoreProperties(ignoreUnknown = true)
public class Location {

    private String city;
    private String country_code;
    private String latitude;
    private String longitude;

    public String getLongitude() {
        return longitude;
    }

    public void setLongitude(String longitude) {
        this.longitude = longitude;
    }

    public String getLatitude() {
        return latitude;
    }

    public void setLatitude(String latitude) {
        this.latitude = latitude;
    }

    public String getCountry_code() {
        return country_code;
    }

    public void setCountry_code(String country_code) {
        this.country_code = country_code;
    }

    public String getCity() {
        return city;
    }

    public void setCity(String city) {
        this.city = city;
    }
}

package c8y.example;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.Map;

import jakarta.annotation.PostConstruct;
import jakarta.servlet.http.HttpServletRequest;

import org.joda.time.DateTime;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.context.event.EventListener;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import com.cumulocity.microservice.autoconfigure.MicroserviceApplication;
import com.cumulocity.microservice.context.ContextService;
import com.cumulocity.microservice.context.credentials.MicroserviceCredentials;
import com.cumulocity.microservice.settings.service.MicroserviceSettingsService;
import com.cumulocity.microservice.subscription.model.MicroserviceSubscriptionAddedEvent;
import com.cumulocity.model.idtype.GId;
import com.cumulocity.rest.representation.alarm.AlarmRepresentation;
import com.cumulocity.rest.representation.event.EventRepresentation;
import com.cumulocity.rest.representation.inventory.ManagedObjectRepresentation;
import com.cumulocity.sdk.client.Platform;
import com.cumulocity.sdk.client.event.EventFilter;

import net.minidev.json.JSONObject;

@MicroserviceApplication
@RestController
public class App {

    @Autowired
    private MicroserviceSettingsService settingsService;

    @Autowired
    private ContextService<MicroserviceCredentials> contextService;

    @Autowired
    private Platform platform;

    private Map<String, String> c8yEnv;

    public static void main (String[] args) {
        SpringApplication.run(App.class, args);
    }


    /**
    * Get some of the environment variables of the container and load the
    * microservice settings
    */
    @PostConstruct
    private void init () {
        // Environment variables
        var env = System.getenv();

        c8yEnv = new HashMap<>();
        c8yEnv.put("app.name", env.get("APPLICATION_NAME"));
        c8yEnv.put("url", env.get("C8Y_BASEURL"));
        c8yEnv.put("jdk", env.get("JAVA_VERSION"));
        c8yEnv.put("tenant", env.get("C8Y_TENANT"));
        c8yEnv.put("user", env.get("C8Y_USER"));
        c8yEnv.put("password", env.get("C8Y_PASSWORD"));
        c8yEnv.put("isolation", env.get("C8Y_MICROSERVICE_ISOLATION"));
        c8yEnv.put("memory.limit", env.get("MEMORY_LIMIT"));

        // Required ID and key
        c8yEnv.put("tracker.id", settingsService.get("tracker.id"));
        c8yEnv.put("ipstack.key", settingsService.get("ipstack.key"));
    }


    /**
    * Create a warning alarm on microservice subscription
    */
    @EventListener(MicroserviceSubscriptionAddedEvent.class)
    public void createAlarm (MicroserviceSubscriptionAddedEvent event) {
        contextService.callWithinContext(event.getCredentials(), () -> {
            var source = new ManagedObjectRepresentation();
            source.setId(GId.asGId(c8yEnv.get("tracker.id")));

            var alarm = new AlarmRepresentation();
            alarm.setSource(source);
            alarm.setSeverity("WARNING");
            alarm.setStatus("ACTIVE");
            alarm.setDateTime(DateTime.now());
            alarm.setType("c8y_Application__Microservice_subscribed");
            alarm.setText("The microservice " + c8yEnv.get("app.name") + " has been subscribed to tenant "
            + c8yEnv.get("tenant"));

            platform.getAlarmApi().create(alarm);

            return true;
        });
    }


    /**
    * Create a LocationUpdate event based on the client's IP
    *
    * @param String The public IP of the client
    * @return The created event
    */
    public EventRepresentation createLocationUpdateEvent (String ip) {
        // Get location details from ipstack
        var rest = new RestTemplate();
        var apiURL = "http://api.ipstack.com/" + ip + "?access_key=" + c8yEnv.get("ipstack.key");
        var location = rest.getForObject(apiURL, Location.class);

        // Prepare a LocationUpdate event using Things Cloud's API
        var c8y_Position = new JSONObject();
        c8y_Position.put("lat", location.getLatitude());
        c8y_Position.put("lng", location.getLongitude());

        var source = new ManagedObjectRepresentation();
        source.setId(GId.asGId(c8yEnv.get("tracker.id")));

        var event = new EventRepresentation();
        event.setSource(source);
        event.setType("c8y_LocationUpdate");
        event.setDateTime(DateTime.now());
        event.setText("Accessed from " + ip + " (" + (location.getCity() != null ? location.getCity() + ", " : "")
        + location.getCountry_code() + ")");
        event.setProperty("c8y_Position", c8y_Position);
        event.setProperty("ip", ip);

        // Create the event in the platform
        platform.getEventApi().create(event);

        return event;
    }


    /* * * * * * * * * * Application endpoints * * * * * * * * * */

    // Check the microservice status/health (implemented by default)
    // GET /health

    // Greeting endpoints
    @RequestMapping("hello")
    public String greeting (@RequestParam(value = "name", defaultValue = "World") String you) {
        return "Hello " + you + "!";
    }

    @RequestMapping("/")
    public String root () {
        return greeting("World");
    }

    // Return the environment values
    @RequestMapping("environment")
    public Map<String, String> environment () {
        return c8yEnv;
    }

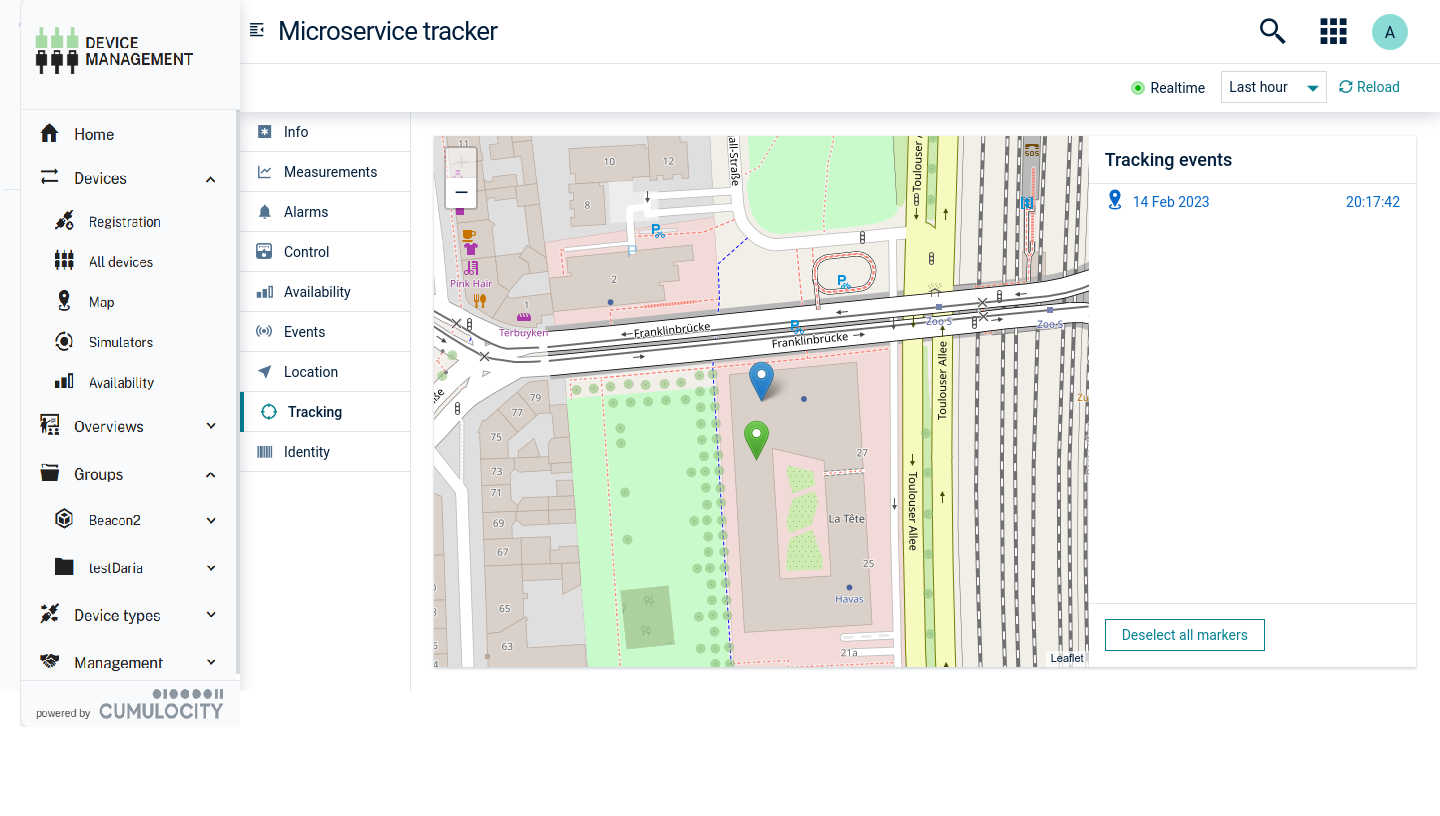

    // Track client's approximate location
    @RequestMapping(value = "location/track", produces="application/json")
    public String trackLocation (HttpServletRequest request) {
        // Get the public IP address and create the event
        return createLocationUpdateEvent(request.getHeader("x-real-ip")).toJSON();
    }

    // Get the tracked IPs and locations
    @RequestMapping("location/locations")
    public ArrayList<Object> getLocations (@RequestParam(value = "max", defaultValue = "5") int max) {
        var filter = new EventFilter().byType("c8y_LocationUpdate");
        var locations = new ArrayList<Object>();
        var eventCollection = platform.getEventApi().getEventsByFilter(filter).get(max);

        eventCollection.getEvents().forEach((event) -> {
            var map = new HashMap<String, Object>();

            map.put("ip", event.getProperty("ip"));
            map.put("coordinates", event.getProperty("c8y_Position"));
            map.put("when", event.getCreationDateTime().toString("yyyy-MM-dd hh:mm:ss"));

            locations.add(map);
        });

        return locations;
    }
}

$ curl -F "data=@target/iptracker-microservice-1.0.0-SNAPSHOT.zip" \
     -H "Authorization: <AUTHORIZATION>" \
     "<URL>/application/applications/<APPLICATION_ID>/binaries"

{
  time: "2019-06-03T08:44:21.730Z",
    source: {
      id: "..."
    },
    text: "Accessed from ... (Sofia, BG)",
    type: "c8y_LocationUpdate",
    c8y_Position: {
      lng: "23.3175",
      lat: "42.683"
    },
    ip: "..."
}

$ docker run -p 8082:80 -e C8Y_BOOTSTRAP_TENANT=<BOOTSTRAP_USER_TENANT> -e C8Y_BOOTSTRAP_USER=<BOOTSTRAP_USER_NAME> -e C8Y_BOOTSTRAP_PASSWORD=<BOOTSTRAP_USER_PASSWORD> -e C8Y_MICROSERVICE_ISOLATION=PER_TENANT -i -t -e C8Y_BASEURL=<URL> iptracker-microservice:latest

// Create
AlarmRepresentation create(AlarmRepresentation alarm) throws SDKException;
Future createAsync(AlarmRepresentation alarm) throws SDKException;
// Read
AlarmRepresentation getAlarm(GId gid) throws SDKException;
AlarmCollection getAlarms() throws SDKException;
AlarmCollection getAlarmsByFilter(AlarmFilter filter) throws SDKException;
// Update
AlarmRepresentation updateAlarm(AlarmRepresentation alarm) throws SDKException;
// Delete
void deleteAlarmsByFilter(AlarmFilter filter) throws IllegalArgumentException, SDKException;

@Autowired
MicroserviceSubscriptionsService subscriptionsService;

@Autowired
InventoryApi inventoryApi;

public List<ManagedObjectRepresentation> getAllDevicesTenants() {
  List<ManagedObjectRepresentation> managedObjectsList = new ArrayList<>();
  InventoryFilter filter = new InventoryFilter().byFragmentType(IsDevice.class);
  subscriptionsService.runForEachTenant( () -> {
    inventoryApi.getManagedObjectsByFilter(filter).get().allPages().forEach(mor -> {
      managedObjectsList.add(mor);
    });
  });
  return managedObjectsList;
}

@Autowired
MicroserviceSubscriptionsService subscriptionsService;

@Autowired
private EventApi eventApi;

public List<EventRepresentation> getAllEvents() {
  List<EventRepresentation> eventsList = new ArrayList<>();
  subscriptionsService.runForEachTenant( () -> {
    eventApi.getEvents().get().getEvents().forEach(event -> {
      eventsList.add(event);
    });
  });
  return eventsList;
}

@Autowired
InventoryApi tenantInventoryApi;

@EventListener
public void initialize(MicroserviceSubscriptionAddedEvent event) {
   String tenant = event.getCredentials().getTenant();
   log.info("Tenant {} - Microservice subscribed", tenant);
   tenantInventoryApi.getManagedObjects().get().allPages();
}

@RestController
@RequestMapping("/devices")
public class DeviceController {

    @Autowired
    InventoryApi inventoryApi;

    @GetMapping(path = "/devicesTenantScope", produces = MediaType.APPLICATION_JSON_VALUE)
    public ResponseEntity<List<ManagedObjectRepresentation>> getAllDevicesTenantScope() {
        List<ManagedObjectRepresentation> managedObjectsList = new ArrayList<>();
        InventoryFilter filter = new InventoryFilter().byFragmentType(IsDevice.class);
        inventoryApi.getManagedObjectsByFilter(filter).get().allPages().forEach(mor -> {
            managedObjectsList.add(mor);
        });
        return new ResponseEntity<>(managedObjectsList, HttpStatus.OK);
    }

}

@RestController
@RequestMapping("/devices")
public class DeviceController {

    @Autowired
    @Qualifier("userInventoryApi")
    InventoryApi userInventoryApi;

    @GetMapping(path = "/devicesUserScope", produces = MediaType.APPLICATION_JSON_VALUE)
    public ResponseEntity<List<ManagedObjectRepresentation>> getAllDevicesUserScope() {
      List<ManagedObjectRepresentation> managedObjectsList = new ArrayList<>();
      InventoryFilter filter = new InventoryFilter().byFragmentType(IsDevice.class);
      userInventoryApi.getManagedObjectsByFilter(filter).get().allPages().forEach(mor -> {
        managedObjectsList.add(mor);
      });
      return new ResponseEntity<>(managedObjectsList, HttpStatus.OK);
    }

}

application.name=<application_name>
C8Y.bootstrap.register=false
C8Y.bootstrap.tenant=<tenant>
C8Y.bootstrap.user=<username>
C8Y.bootstrap.password=<password>

@EventListener
public void onAdded (MicroserviceSubscriptionAddedEvent event {
    log.info("subscription added for tenant: " + event.getCredentials().getTenant());
});

@Autowired
private Environment environment;

public int getAccessTimeout() {
    return environment.getProperty("access.timeout", Integer.class, 30);
}

@Autowired
private MicroserviceSettingsService settingsService;

public String getAccessTimeout() {
    return settingsService.get("access.timeout");
}

access.timeout=25

"settings": [{
    "key": "access.timeout",
    "defaultValue": "35",
    "editable": true
}]

POST <URL>/tenant/options

BODY:
  {
    "category": "helloworld",
    "key": "access.timeout",
    "value": "40"
  }

<project>
  ...
  <build>
    ...
    <plugins>
    ...
      <plugin>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-maven-plugin</artifactId>
          <executions>
              <execution>
                  <goals>
                      <goal>repackage</goal>
                  </goals>
              </execution>
          </executions>
          <configuration>
              <mainClass>${main.class}</mainClass>
          </configuration>
      </plugin>
      <plugin>
          <groupId>com.nsn.cumulocity.clients-java</groupId>
          <artifactId>microservice-package-maven-plugin</artifactId>
          <version>${c8y.version}</version>
          <executions>
              <execution>
                  <id>package</id>
                  <phase>package</phase>
                  <goals>
                    <goal>package</goal>
                  </goals>
                  <configuration>
                    <name>hello-world</name>
                    <encoding>UTF-8</encoding>
                    <rpmSkip>true</rpmSkip>
                    <containerSkip>false</containerSkip>
                  </configuration>
              </execution>
              <execution>
                  <id>microservice-package</id>
                  <phase>package</phase>
                  <goals>
                    <goal>package</goal>
                  </goals>
                  <configuration>
                    <name>hello-world</name>
                    <image>hello-world</image>
                    <encoding>UTF-8</encoding>
                    <skip>false</skip>
                  </configuration>
              </execution>
          </executions>
      </plugin>
      ...
    </plugins>
    ...
  </build>
  ...
</project>

...
<plugin>
  <groupId>com.nsn.cumulocity.clients-java</groupId>
  <artifactId>microservice-package-maven-plugin</artifactId>
  <version>${c8y.version}</version>
  <executions>
    <execution>
      <configuration>
        <name>hello-world</name>
        <encoding>UTF-8</encoding>
        <rpmSkip>true</rpmSkip>
        <containerSkip>false</containerSkip>
        <manifestFile>${basedir}/src/main/microservice/cumulocity.json</manifestFile>
        <heap>
          <min>200m</min>
          <max>600m</max>
        </heap>
        <metaspace>
          <min>200m</min>
          <max>300m</max>
        </metaspace>
      </configuration>
    </execution>
  </executions>
</plugin>
...

-Dskip.agent.package.rpm=true
-Dagent-package.arguments=XX:+PrintCommandLineFlags,-XX:+UseCompressedClassPointers,-XX:+UseCompressedOops

<project ... >
  ...
  <properties>
    ...
    <custom-property.metaspace.min>200m</custom-property.metaspace.min>
    <custom-property.metaspace.max>300m</custom-property.metaspace.max>
    ...
  </properties>
  ...
</project>

<project ... >
  ...
  <build>
    ...
    <plugins>
      ...
      <plugin>
        <groupId>com.nsn.cumulocity.clients-java</groupId>
        <artifactId>microservice-package-maven-plugin</artifactId>
        <version>…</version>
        <executions>
          <execution>
            <id>package</id>
            <phase>package</phase>
            <goals>
              <goal>package</goal>
            </goals>
            <configuration>
              <name>${microservice.name}</name>
              <image>${microservice.name}</image>
              <encoding>UTF-8</encoding>
              ...
              <metaspace>
                <min>${custom-property.metaspace.min}</min>
                <max>${custom-property.metaspace.max}</max>
              </metaspace>
              ...
            </configuration>
          </execution>
        </executions>
      </plugin>
    </plugins>
  </build>
</project>

<configuration>
    <registry>http://{yourregistry.com}</registry>
    <containerSkip>false</containerSkip>
</configuration>

<server>
    <id>microservice</id>
    <username>demos/username</username>
    <password>******</password>
    <configuration>
        <url>https://demos.cumulocity.com</url>
    </configuration>
</server>

<plugin>
    <groupId>com.nsn.cumulocity.clients-java</groupId>
    <artifactId>microservice-package-maven-plugin</artifactId>
    <configuration>
        <application>
            <name>helloworld</name>
        </application>

        <!-- please note that the credentials are optional if they are already configured in settings.xml -->
        <credentials>
            <url>https://demos.cumulocity.com</url>
            <username>demos/username</username>
            <password>******</password>
        </credentials>

        <skipMicroserviceUpload>false</skipMicroserviceUpload>
    </configuration>
</plugin>

$ mvn microservice:upload -Dupload.application.name=helloworld -Dupload.url=https://demos.cumulocity.com -Dupload.username=demos/username -Dupload.password=****** -Dskip.microservice.upload=false

POST /application/applications
Host: ...
Authorization: Basic xxxxxxxxxxxxxxxxxxx
Content-Type: "application/json"

BODY:
  {
		"name": "<APPLICATION_NAME>",
		"type": "MICROSERVICE",
		"key": "<APPLICATION_NAME>-microservice-key"
  }

$ curl -X POST -s \
      -d '{"name":"hello-microservice-1","type":"MICROSERVICE","key":"hello-microservice-1-key"}' \
      -H "Authorization: <AUTHORIZATION>" \
      -H "Content-type: application/json" \
      "<URL>/application/applications"

GET /application/applicationsByName/<APPLICATION_NAME>
Host: ...
Authorization: Basic xxxxxxxxxxxxxxxxxxx
Accept: "application/json"

$ curl -H "Authorization:<AUTHORIZATION>" \
     <URL>/application/applicationsByName/hello-world

POST /application/applications/<APPLICATION_ID>/binaries
Host: ...
Authorization: Basic xxxxxxxxxxxxxxxxxxx
Content-Type: "multipart/form-data"

$ curl -F "data=@<PATH_TO_ZIP>" \
	     -H "Authorization: <AUTHORIZATION>" \
	     "<URL>/application/applications/<APPLICATION_ID>/binaries"

POST /tenant/tenants/<TENANT_ID>/applications
Host: ...
Authorization: Basic xxxxxxxxxxxxxxxxxxx
Content-Type: "multipart/form-data"

BODY:
  {
    "application": {
        "id": "<APPLICATION_ID>"
    }
  }

$ curl -X POST -d '{"application":{"id": "<APPLICATION_ID>"}}'  \
       -H "Authorization: <AUTHORIZATION>" \
       -H "Content-type: application/json" \
       "<URL>/tenant/tenants/<TENANT_ID>/applications"

$ docker run -e "C8Y_BASEURL=<C8Y_BASEURL>" -e "C8Y_BASEURL_MQTT=<C8Y_BASEURL_MQTT>" -e "C8Y_BASEURL_PULSAR=<C8Y_BASEURL_PULSAR>" <IMAGE_NAME>

GET <URL>/service/<APPLICATION_NAME>/health

HTTP/1.1 200
{
  "status": "UP"
}

HTTP/1.1 503
{
  "status": "DOWN"
}

Platform platform = new PlatformImpl("<URL>", CumulocityBasicCredentials.from("<TENANT_ID>/<USERNAME>:<PASSWORD>"));

Platform platform = new PlatformImpl("https://demos.cumulocity.com", CumulocityBasicCredentials.from("mytenant/myuser:mypassword"));

new PlatformImpl("<URL>", "<TENANT_ID>", "<USERNAME>", "<PASSWORD>", "<APPLICATION_KEY>");

new PlatformImpl("<URL>", "<TENANT_ID>", "<USERNAME>", "<PASSWORD>", "<APPLICATION_KEY>", <PAGE_SIZE>);

InventoryApi inventory = platform.getInventoryApi();

InventoryFilter inventoryFilter = new InventoryFilter();
inventoryFilter.byFragmentType(Position.class);
ManagedObjectCollection moc = inventory.getManagedObjectsByFilter(inventoryFilter);

for (ManagedObjectRepresentation mo : moc.get().allPages()) {
	System.out.println(mo.getName());
}

ManagedObjectRepresentation mo = new ManagedObjectRepresentation();
mo.setName("MyMeter-1");

Relay relay = new Relay();
mo.set(relay);

SinglePhaseElectricitySensor meter = new SinglePhaseElectricitySensor();
mo.set(meter);

// Set additional properties, for example, tariff tables
mo = inventory.create(mo);
System.out.println(mo.getId());

public class Tariff {
    public int getNightTariffStart() {
        return nightTariffStart;
    }

    public void setNightTariffStart(int nightTariffStart) {
        this.nightTariffStart = nightTariffStart;
    }

    public int getNightTariffEnd() {
        return nightTariffEnd;
    }

    public void setNightTariffEnd(int nightTariffEnd) {
        this.nightTariffEnd = nightTariffEnd;
    }

    private int nightTariffStart = 22;
    private int nightTariffEnd = 6;
}

Tariff tariff = new Tariff();
mo.set(tariff);

final String ASSET_TYPE = "com_cumulocity_idtype_AssetTag";
final String deviceUrl = "SAMPLE-A-239239232";

ExternalIDRepresentation externalIDGid = new ExternalIDRepresentation();
externalIDGid.setType(ASSET_TYPE);
externalIDGid.setExternalId(deviceUrl);
externalIDGid.setManagedObject(mo);

IdentityApi identityApi= platform.getIdentityApi();
identityApi.create(externalIDGid);

ID id = new ID();
id.setType(ASSET_TYPE);
id.setValue(deviceUrl);
externalIDGid = identityApi.getExternalId(id);

MeasurementApi measurementApi = platform.getMeasurementApi();
MeasurementFilter measurementFilter = new MeasurementFilter();

Calendar cal = Calendar.getInstance();
Date toDate = cal.getTime();
cal.add(Calendar.DATE, -14);

Date fromDate = cal.getTime();
measurementFilter.byDate(fromDate, toDate);
measurementFilter.byFragmentType(SignalStrength.class);

MeasurementCollection mc = measurementApi.getMeasurementsByFilter(measurementFilter);
MeasurementCollectionRepresentation measurements = mc.get();

for (; measurements != null; measurements = mc.getNextPage(measurements)) {
	for (MeasurementRepresentation measurement : measurements.getMeasurements()) {
		SignalStrength signal = measurement.get(SignalStrength.class);
		System.out.println(measurement.getSource().getId() + " " + measurement.getTime() + " " + signal.getRssiValue() + " " + signal.getBerValue());
	}
}

ManagedObjectRepresentation agent = new ManagedObjectRepresentation();
agent.set(new com.cumulocity.model.Agent()); // agents must include this fragment

// ... create agent in inventory
ManagedObjectRepresentation device;

// ... create device in inventory
ManagedObjectReferenceRepresentation child2Ref = new ManagedObjectReferenceRepresentation();
child2Ref.setManagedObject(device);
inventory.getManagedObject(agent.getId()). addChildDevice(child2Ref);

DeviceControlApi control = platform.getDeviceControlApi();
OperationRepresentation operation = new OperationRepresentation();

operation.setDeviceId(mo.getId());
relay.setRelayState(RelayState.OPEN);
operation.set(relay);
control.create(operation);

OperationFilter operationFilter = new OperationFilter();
operationFilter.byAgent(mo.getId().getValue());
operationFilter.byStatus(OperationStatus.PENDING);
OperationCollection oc = control.getOperationsByFilter(operationFilter);

OperationCollectionRepresentation opCollectionRepresentation;

for (opCollectionRepresentation = oc.get(); opCollectionRepresentation != null; opCollectionRepresentation = oc.getNextPage(opCollectionRepresentation)) {
	for (OperationRepresentation op : opCollectionRepresentation.getOperations()) {
		System.out.println(op.getStatus());
	}
}

Subscriber<GId, OperationRepresentation> subscriber = deviceControl.getNotificationsSubscriber();
Subscription<> subscription = subscriber.subscribe(agentId, new SubscriptionListener<GId, OperationRepresentation> {

    public void onError(Subscription<GId> sub, Throwable e) {
		logger.error("OperationDispatcher error!", e);
	}

	public void onNotification(Subscription<GId> sub, OperationRepresentation operation) {
		// Execute the operation
	}
});

subscription.unsubscribe();

subscriber.disconnect();

// Obtain a handle to the Subscription and Token APIs:
private final NotificationSubscriptionApi notificationSubscriptionApi = platform.getNotificationSubscriptionApi();
private final TokenApi tokenApi = platform.getTokenApi();

// Create subscription filter
final NotificationSubscriptionFilterRepresentation filterRepresentation = new NotificationSubscriptionFilterRepresentation();
filterRepresentation.setApis(List.of("measurements"));
filterRepresentation.setTypeFilter("c8y_Speed");

// Construct subscription for managed object context
final NotificationSubscriptionRepresentation subscriptionRepresentation1 = new NotificationSubscriptionRepresentation();
subscriptionRepresentation1.setContext("mo");
subscriptionRepresentation1.setSubscription("testSubscription1");
subscriptionRepresentation1.setSource(mo);
subscriptionRepresentation1.setSubscriptionFilter(filterRepresentation);
subscriptionRepresentation1.setFragmentsToCopy(List.of("c8y_SpeedMeasurement", "c8y_MaxSpeedMeasurement"));

// Create subscription for managed object context
subscriptionApi.subscribe(subscriptionRepresentation1);

// Construct subscription for tenant context
final NotificationSubscriptionRepresentation subscriptionRepresentation2 = new NotificationSubscriptionRepresentation();
subscriptionRepresentation2.setContext("tenant");
subscriptionRepresentation2.setSubscription("testSubscription2");

// Create subscription for tenant context
subscriptionApi.subscribe(subscriptionRepresentation2);

// Obtain access token
final NotificationTokenRequestRepresentation tokenRequestRepresentation = new NotificationTokenRequestRepresentation(
        properties.getSubscriber(), // The subscriber name with which the client wishes to be identified.
        "testSubscription1",        // The subscription name. This value should be the same as with which the subscription was created. The access token will be only valid for the subscription specified here.
        1440,                       // The token expiration duration in minutes.
        false);

// The obtained token is required for establishing a WebSocket connection. Refer to [Notifications 2.0](https://developer.ntt.com/iot/docs/api/core/#tag/Notification-2.0-API) for more details.
final String token = tokenApi.create(tokenRequestRepresentation).getTokenString();

// Query all subscriptions
final NotificationSubscriptionCollection notificationSubscriptionCollection = subscriptionApi.getSubscriptions();
final List<NotificationSubscriptionRepresentation> subscriptions = notificationSubscriptionCollection.get().getSubscriptions();

for (NotificationSubscriptionRepresentation subscriptionRepresentation : subscriptions) {
    System.out.println(subscriptionRepresentation);
}

// Query subscriptions by filter
final NotificationSubscriptionCollection filteredNotificationSubscriptionCollection = subscriptionApi
        .getSubscriptionsByFilter(new NotificationSubscriptionFilter().byContext("mo"));
final List<NotificationSubscriptionRepresentation> filteredSubscriptions = filteredNotificationSubscriptionCollection.get().getSubscriptions();

for (NotificationSubscriptionRepresentation subscriptionRepresentation : filteredSubscriptions) {
    System.out.println(subscriptionRepresentation);
}

// Delete all tenant subscriptions
subscriptionApi.deleteTenantSubscriptions();

// Delete by source
subscriptionApi.deleteBySource(mo.getId().getValue());

AlarmApi alarmApi = platform.getAlarmApi();
Future future = alarmApi.createAsync(anAlarm);

ServicesPlatform platform = new ServicesPlatformImpl("<URL>", new CumulocityCredentials("<tenant>", "<user>", "<password>", "<application key>"));

SmsMessagingApi smsMessagingApi = platform.getSmsMessagingApi();

SendMessageRequest smsMessage = SendMessageRequest.builder()
        .withSender(Address.phoneNumber("<phone number>"))
        .withReceiver(Address.phoneNumber("<phone number>"))
        .withMessage("<message text>")
        .build();

smsMessagingApi.sendMessage(smsMessage);

smsMessagingApi.getAllMessages(Address.phoneNumber("<phone number>"));

smsMessagingApi.getMessage(Address.phoneNumber("<phone number>"), "<message id>");

POST /service/messaging/smsmessaging/outbound/tel:<sender phone number>/requests
Host: ...
Authorization: Basic ...
Content-Type: application/json
{
    "outboundSMSMessageRequest": {
        "address": ["tel:<phone number>"],
        "senderAddress": "tel:<phone number>",
        "outboundSMSTextMessage": {
  	       "message": "<message text>"
        },
        "receiptRequest": {
  	       "notifyUrl": "<notify url>",
  	        "callbackData": "<callback data>"
        },
        "senderName": "<sender name>"
    }
}

GET /service/messaging/smsmessaging/inbound/registrations/tel:<receiver phone number>/messages
Host: ...
Authorization: Basic ...

HTTP/1.1 200 OK
{
     "inboundSMSMessageList": [
        {
            "inboundSMSMessage": {
            "dateTime": "<date>",
            "destinationAddress": "<destination address>",
            "messageId": "<message id>",
            "message": "<message>",
            "resourceURL": "<resource url>",
            "senderAddress": "<sender address>"
        }
     ]
}

GET /service/messaging/smsmessaging/inbound/registrations/tel:<receiver phone number>/messages/<message id>
Host: ...
Authorization: Basic ...

HTTP/1.1 200 OK
{
    "inboundSMSMessage": {
        "dateTime": "<date>",
        "destinationAddress": "<destination address>",
        "messageId": "<message id>",
        "message": "<message>",
        "resourceURL": "<resource url>",
        "senderAddress": "<sender address>"
    }
}

{
"category": "<application-name>",
"key": "otel.javaagent.enabled",
"value": "true"
}

            <plugin>
                <groupId>com.nsn.cumulocity.clients-java</groupId>
                <artifactId>microservice-package-maven-plugin</artifactId>
                <version>${c8y.version}</version>
                <executions>
                    <execution>
                        <id>package</id>
                        <phase>package</phase>
                        <goals>
                            <goal>package</goal>
                        </goals>
                        <configuration>
                            ...
                            <otelJavaAgentInclude>true</otelJavaAgentInclude>
                            ...
                        </configuration>
                    </execution>
                </executions>
            </plugin>

import io.opentelemetry.api.GlobalOpenTelemetry;
import io.opentelemetry.api.metrics.Meter;

Meter meter = GlobalOpenTelemetry.getMeter("application");

$ echo | openssl s_client -servername *.cumulocity.com -connect *.cumulocity.com:443 |sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p' > cumulocity.com.crt

$ $JAVA_HOME/bin/keytool -import -alias cumulocity -file cumulocity.com.crt -storepass changeit

-Djavax.net.ssl.trustStore=<home directory>/.keystore

$ keytool -import -v -trustcacerts -alias root -file gd_bundle.crt -keystore $JAVA_HOME/lib/security/cacerts

$ lsof -i tcp:8080

COMMAND    PID  USER  FD   TYPE      DEVICE  SIZE/OFF  NODE  NAME
java     12985   neo  45u  IPv6  0x077c76d0       0t0   TCP  *:8080 (LISTEN)

[ERROR] Failed to execute goal com.nsn.cumulocity.clients-java:microservice-package-maven-plugin:1004.6.12:package (package) on project hello-microservice-java: Execution package of goal com.nsn.cumulocity.clients-java:microservice-package-maven-plugin:1004.6.12:package failed: org.apache.maven.plugin.MojoExecutionException: Exception caught: java.util.concurrent.ExecutionException: com.spotify.docker.client.shaded.javax.ws.rs.ProcessingException: java.io.IOException: Permission denied -> [Help 1]

$ docker ps
Got permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Get http://%2Fvar%2Frun%2Fdocker.sock/v1.40/containers/json: dial unix /var/run/docker.sock: connect: permission denied
